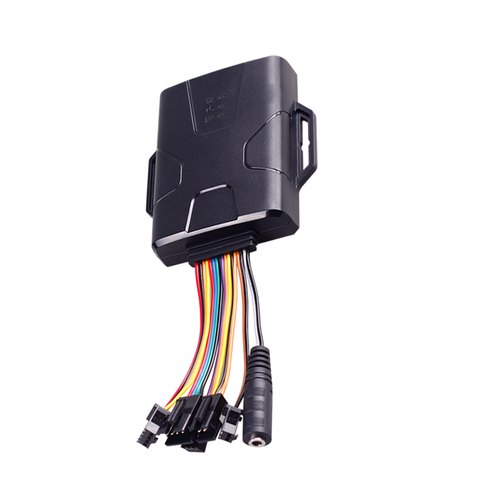

AIS-140 WETRACK 800

Features

GPS+AGPS TRACKING

IP66 DUST AND WATERPROOF

50000 PIECES OF DATA STORAGE

DOOR STATUS DETECTION

SOS EMERGENCY CALL

TWO-WAY COMMUNICATION

MULTIPLE ANALOG & DIGITAL I/O

MULTIPLE ALARMS

Specifications

GSM Specification

GSM frequency

850/900/1800/1900 MHz

GPRS

Class 12, TCP/IP

Memory

64Mb

Phase error

RMSPE< 5,PPE< 20

Max output

GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm

Max frequency error

±0.1ppm

GPS Specification

GPS chipset

MTK high sensitivity chip

Frequency

L1,1575.42MHz C/A code

GPS channel

Location accuracy

< 10 meters

Tracking sensitivity

-162dBm

Acquisition sensitivity

-148dBm

TTFF (open sky)

Avg. hot start≤1sec Avg. cold start≤32sec

Functional Specification

Voice monitor range

≤5 meters

Battery

800mAh/3.7V Li-Polymer battery

Working voltage/current

9-36VDC/45mA(12VDC), 28mA(24VDC)

Operating temperature

-20℃～ 70℃

Dimension

93.0(L)*76.0(W)*18.0(H)mm

Weight

91.7g

Accessories

Power cable, SOS cable, Microphone, Replay(4pin),2*Relay(5pin), Speaker, I&O cable
